Quality Assurance & Testing

Every lens undergoes rigorous multi-point inspection ensuring optical excellence.

100% Inspection Protocol

Every EverClear lens passes through our comprehensive quality assurance system. No lens leaves our facility without meeting strict optical performance criteria and ISO compliance standards.

Six-Point Inspection Process

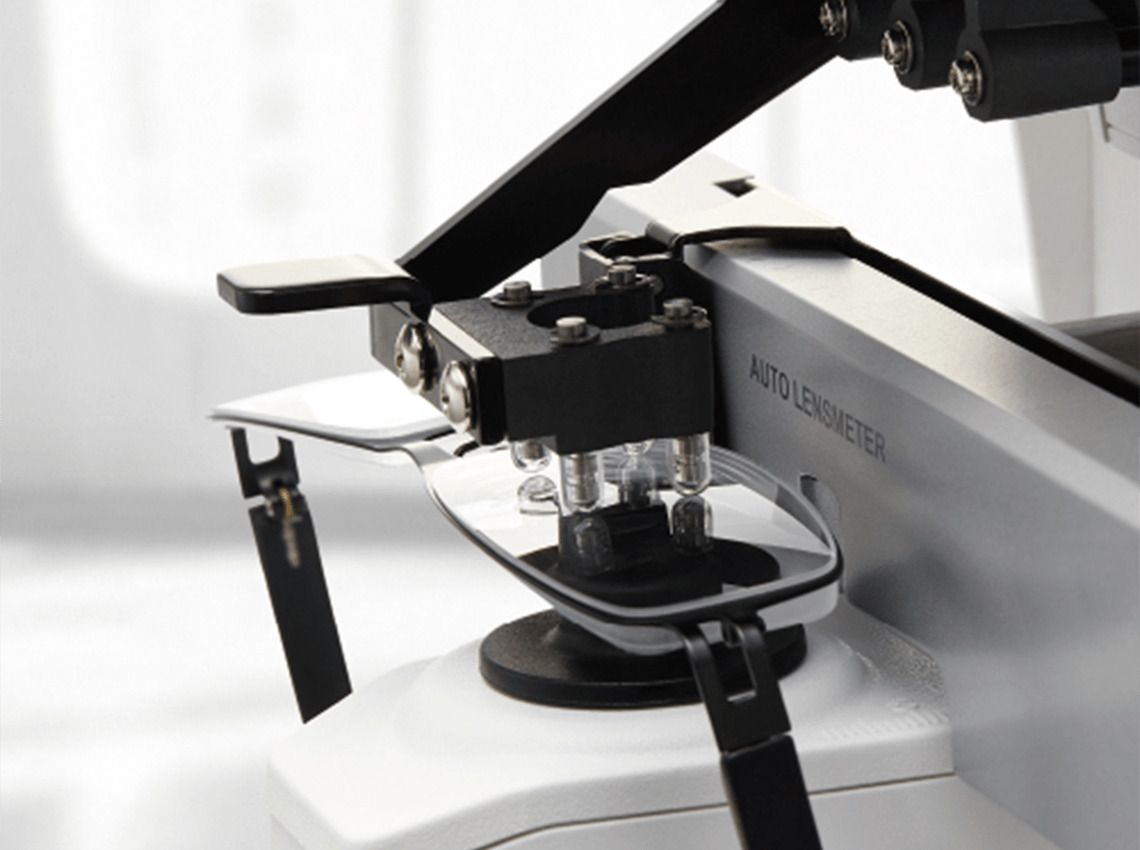

Prescription Verification

1. Prescription Verification

Digital lensmeter measurement confirms sphere, cylinder, axis, addition, and prism values match the prescription within ±0.12D tolerance.

  • Automated lensmeter verification
  • ISO 21987:2017 compliance
  • Power tolerance: ±0.12D
  • Axis tolerance: ±2°
Optical Centre Accuracy

2. Optical Centre Accuracy

Precise measurement of optical centre location and progressive corridor alignment ensuring proper positioning for frame fitting.

  • ±0.1mm positional accuracy
  • Corridor alignment verification
  • Distance between lenses (DBL)
  • Pantoscopic tilt evaluation
Surface Quality Inspection

3. Surface Quality Inspection

Comprehensive examination of both lens surfaces for cosmetic defects, inclusions, or manufacturing marks that could affect vision or appearance.

  • Surface scratch inspection
  • Inclusion detection
  • Edge quality assessment
  • Engraving verification

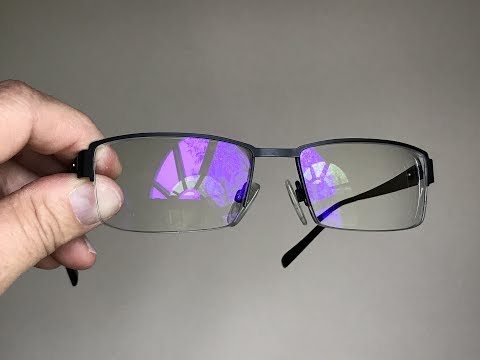

Coating Integrity Testing

4. Coating Integrity Testing

Multi-layer coating system verification including adhesion, uniformity, and optical performance characteristics.

  • Cross-hatch adhesion test
  • Reflectance measurement
  • Hydrophobic contact angle
  • UV transmission blocking

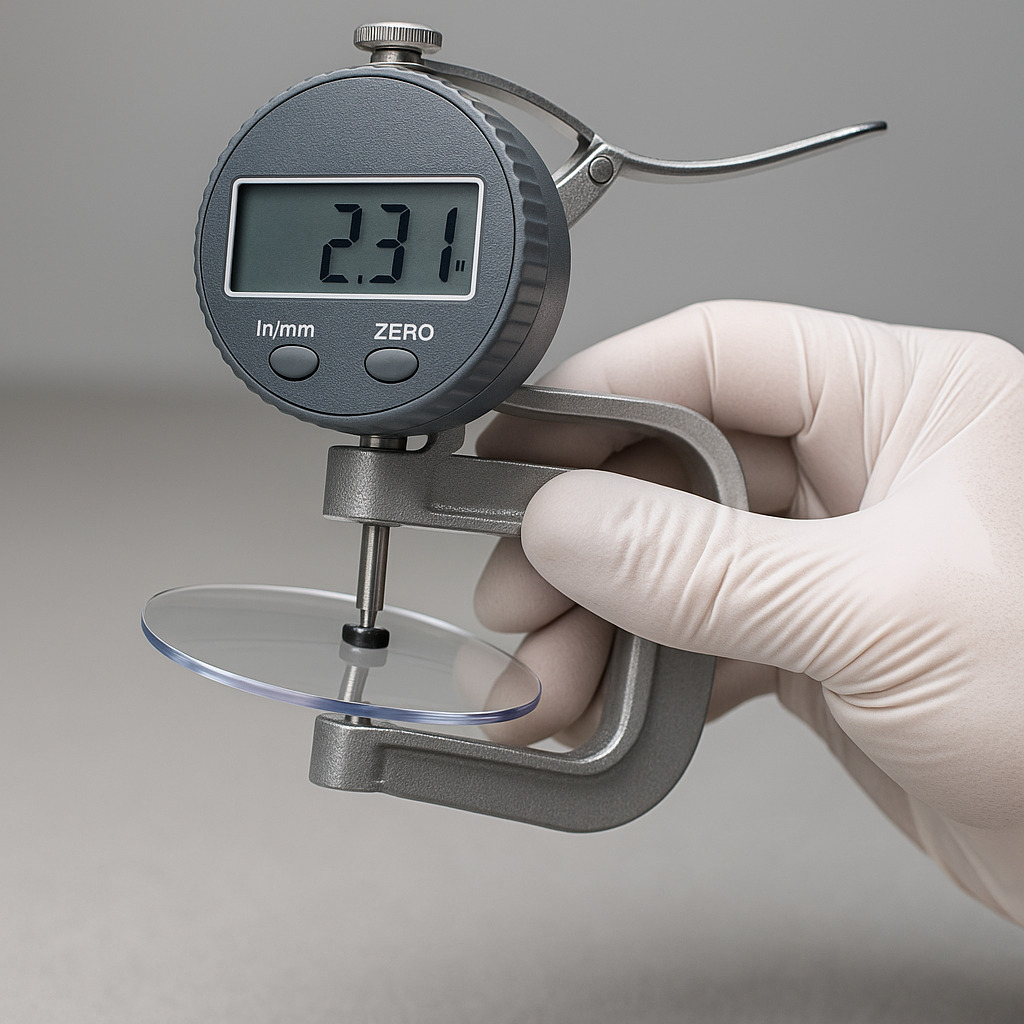

Thickness & Edge Profile

5. Thickness & Edge Profile

Centre thickness and edge thickness measurements verified against specification with ±0.05mm tolerance for cosmetic and weight optimization.

  • Centre thickness verification
  • Edge thickness measurement
  • Safety edge bevel (rimless/nylor)
  • EN 166 compliance for safety
Final Visual & Packaging

6. Final Visual & Packaging

Complete visual inspection under controlled lighting followed by secure packaging with full documentation and traceability.

  • Final cosmetic inspection
  • Engraving and markings accuracy
  • Operator ID and batch number
  • Label match confirmation

International Standards Compliance

EverClear lenses meet or exceed all applicable international optical standards for finished prescription lenses.

BS EN ISO 21987:2017

Ophthalmic optics — Mounted spectacle lenses. Complete compliance with prescription accuracy, optical quality, and durability requirements.

ISO 8980 Series

Ophthalmic optics — Uncut finished spectacle lenses. Adherence to standards for finished lens quality, testing methods, and specifications.

EN 166

Personal eye protection — Specifications. Safety eyewear compliance where applicable including impact resistance and edge safety.

UKCA / CE Compliant

Full regulatory compliance for UK and European markets including medical device regulations and safety requirements.

Precision Measurement Equipment

State-of-the-art metrology instruments ensure accurate, repeatable measurements throughout the inspection process.

Digital Lensmeter

Nidek LM-500 automated lensmeter providing ±0.12D accuracy for sphere, cylinder, axis, and progressive addition verification.

Optical Surface Analyzer

Advanced wavefront analysis system measuring higher-order aberrations and overall optical quality across the entire lens surface.

Thickness Gauge

Lens Thickness Gauge Series II providing ±0.05mm accuracy for centre and edge thickness measurements with digital readout.

Reflectance Spectrometer

Spectrophotometer measuring coating reflectance, transmission, and UV blocking performance with ISO-traceable calibration.

Our Quality Guarantee

We stand behind every lens we manufacture. EverClear lenses are covered by a 12-month manufacturing warranty on lenses and coatings.

If a manufacturing fault is confirmed during normal use, we'll repair or replace the lens at no charge under our warranty policy. This includes defects in prescription accuracy, coating integrity, or material quality that result from the manufacturing process.

Your patients receive the same premium-grade optical performance found in branded lenses costing £100–£500 more, backed by rigorous UK quality control and comprehensive warranty protection.
